However, having gone through all of the steps, I can't connect to the database when I go to http://{configured public ip address}:7474/

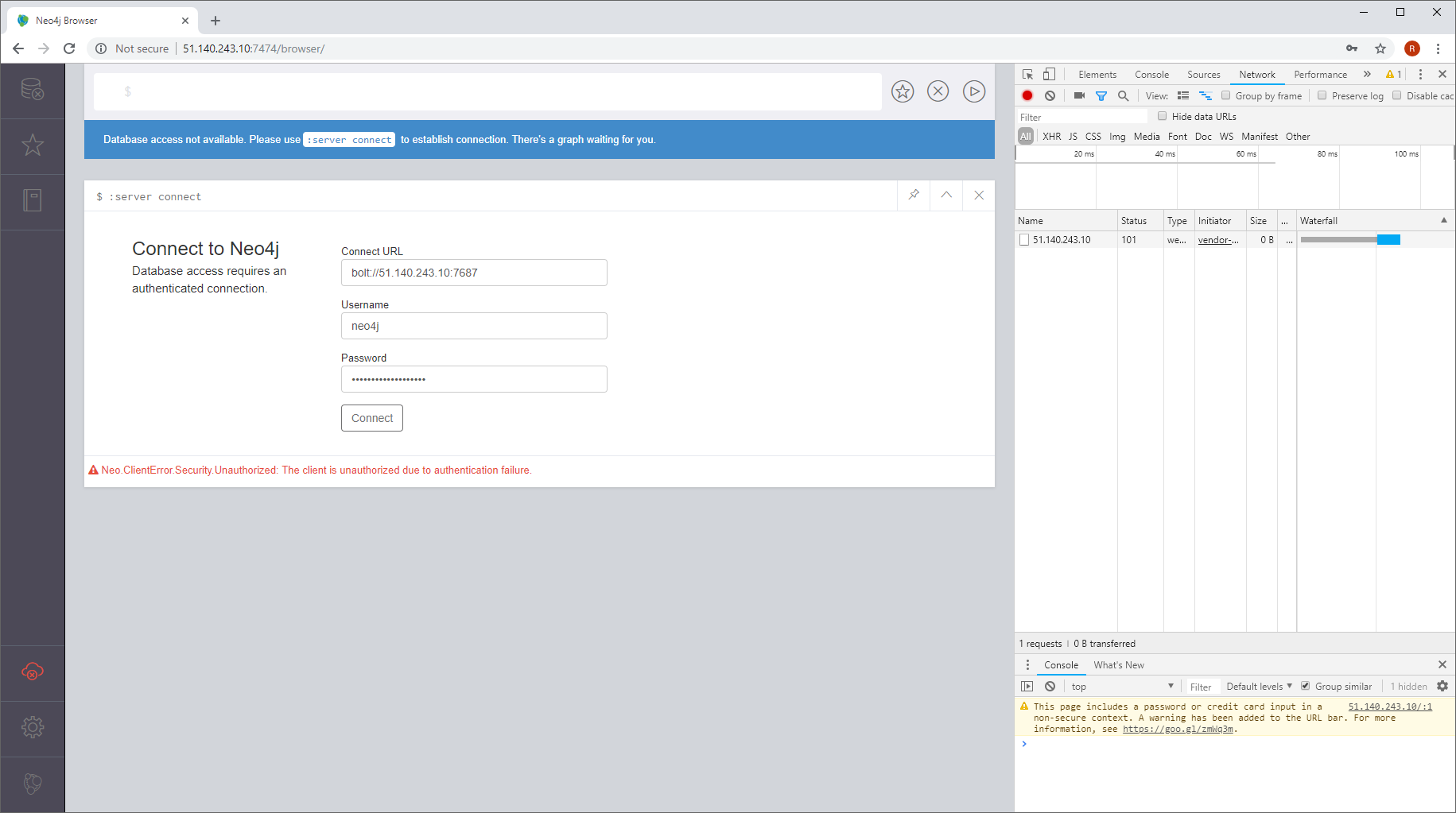

I use the username neo4j, and the password I set up when I applied the Azure template (as well as the password neo4j), but I always get the error "Neo.ClientError.Security.Unauthorized: The client is unauthorized due to authentication failure.
Are there any other default passwords used by the system?
Note that I can sign in using the Cypher shell -- it's just the database http://{configured public ip address}:7474/ that won't let me sign in using the bolt link. The fact that I can sign in using the Cypher shell means that I have the correct username and password.
We're in the process of revising the Azure templates right now to simplify them. Right now there is a lot of optionality in the way the template gets launched, that presents some possibilities to get fouled up in the process, which is unfortunate.
When you first launch your cluster on Azure, you get to choose two auth credentials; one as an SSH key/password to log into the VMs, and the second as a Neo4j password. For the browser you should use the Neo4j password. Can you confirm this is the one you're using?
Also, try opening your browser web inspector pane, and see if there's any additional information there.
If you get an unauthorized error, that's usually a pretty clean and straightforward situation -- connectivity & firewalling is not the issue, rather neo4j just doesn't like your password.
If you could try using cypher-shell and paste the results of how you're calling it (obscuring IP and password if you like) we can try to help further.
I've tried the reinstallation process multiple times, using the same neo4j password setup. I'm using identical passwords for my admin user and my neo4j user. The admin user works, as I can SSH into my machines at ports 22000, 22001 and 22002.
This time round, I can't connect via bolt at all, either through the browser, the desktop or the Cypher shell. There isn't much network information available when I try to sign in.
Could you please screenshoot the parameters you're putting in before this deploy fails?
The neo4j password for bolt is different than the admin password chosen for SSH.
If you can't get the bolt connection to work, you have the option to log in by SSH and reset the password on each node using neo4j admin tools, which you should consider. I'd like to help but I can't quite tell what's happening from the info you've provided so far.

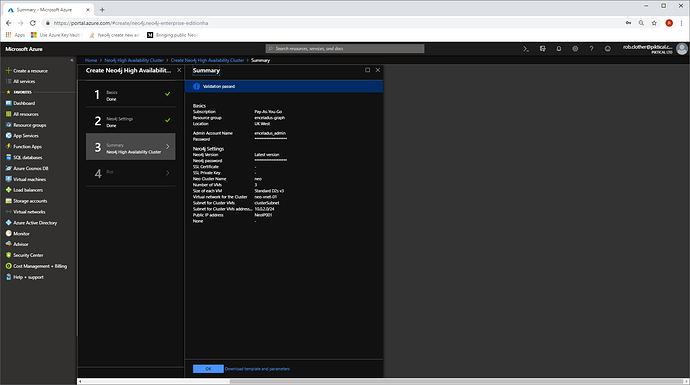

Second screen: no SSL certificate, Latest version, 3 D2S v3 nodes. The neo4j has the same password as the admin user (previous screen). All other options set to defaults.
It's possible that this step is failing and is not being monitored as part of the deploy. This would be checkable by you if you check the init scripts for the node in the deployment.
In particular check the logs of the init scripts and see if you see this:
Failed to set neo4j password
That's just to try and figure what's going on here. If you want to resolve the issue, I would suggest first trying the default password "neo4j". My bet is that the password reset on deploy failed, and you should be able to get in with just "neo4j". If this doesn't work try the command with curl above, to reset using the password that should be present from within the machine.
If neither of these work, you might try deleting the auth files (generally they're in /var/lib/neo4j/data/dbms/auth) and then restarting. This should reset to the default password and you shouldn't lose anything else valuable if you've just launched anyway.
Sorry you're having these problems. We've finished with engineering the newer setup, we're now just pushing it through the Azure marketplace approval process. If you need a setup now, these steps above is my best recommendation. If you can wait a bit, the newer deploy process is going to be more simplified, and shouldn't have this issue to begin with.
