How to Model & Package data onto Kafka to be sinked into Neo4J - Noob

[georgelza]

Hi all

Hope I can bother and ask for some assistance... Long history in structured databases, so understand relationships etc. Just dipping toes into GraphDB's.

I got an inbound streaming financial dataset and trying to model it out from a large json document into sub sets structured as json messages to go onto various Kafka Topics to be sinked into Neo4J.

<Dumping to CSV files and loading CSV's are not a option>

These will will be defining the Account nodes and Bank nodes and the edges edges between the accounts based on the transactions and the edges between the banks and the accounts...

Idea for Topics:
AccountHolders -> Nodes/Vertices
Banks - Nodes/Vertices
CustomerTransaction -> Edges/Links
CustomerBank -> Edges/Links

Below is some basic "records" examples.

Please advise on "best" proposal for json message structures.
If I can ask... also... for the NeofJ.json sink file. I'm posting a generic version I found on the site. I will take care of the server detail, need assistance with the "sink" lines. was thinking everything except for transactions should be upserts, transactions will be a straight insert.

Nodes/Vertices: AccountHolders 1

	AccountNumber: aolfyh-45284520934579845
	BankID: aolfyh
	FullName: John Doe
	...

Nodes/Vertices: AccountHolders 2

	AccountNumber: ppkyye-45284503744579845
	BankID: ppkyye
	FullName: Mary Ann
	...

AccountHolders 1 (Subject) -> PaysFunds (Transaction 1): Predicate -> AccountHolders 2 (Object)
AccountHolders 1 (Subject) -> CustomerOf: Predicate -> Bank 1 (Object)

AccountHolders 2 (Subject) -> ReceivesFunds (Transaction 2): Predicate -> AccountHolders 1 (Object)
AccountHolders 2 (Subject) -> CustomerOf: Predicate -> Bank 2 (Object)

Nodes/Vertices: Banks 1

	Bank: Silly Pot of Gold
	BankID: aolfyh
	...

Nodes/Vertices: Banks 2

	Bank: Diamond Heist
	BankID: aolfyh
	...

Bank/AccountHolders: Edges/Links 1

	AccountNumber: aolfyh-45284520934579845
	Verb: Customer of
	BankID: aolfyh
	...

Bank/AccountHolders: Edges/Links 2

	AccountNumber: ppkyye-45284503744579845
	Verb: Customer of
	BankID: ppkyye
	...

CustomerTransaction: Edges 1

	Verb: PaidFundsTo
	TransactionID: 341234-56354634-123412341-56745674-2452345
	CustomerAccountNumber: aolfyh-45284520934579845
	CustomerBankID: aolfyh
	CounterPartyAccountNumber: ppkyye-45284503744579845
	CounterPartyBankID: ppkyye
	TxnDateTime: DD:MM:YYYY-HH:MM:SS
	Amount: 100.00
	Currency: ZAR
	...

*CustomerTransaction: Edges 2

	Verb: RecievedFundsFrom
	TransactionID: 341234-56354634-123412341-56745674-2452543
	CustomerAccountNumber: ppkyye-45284503744579845
	CustomerBankID: ppkyye
	CounterPartyAccountNumber: aolfyh-45284520934579845
	CounterPartyBankID: aolfyh
	DateTime: DD:MM:YYYY-HH:MM:SS
	Amount: 100.00
	Currency: ZAR
	...

Neo4JSink.json
I left a gap at the lines I think I need to define sinks for for the above topics...

{
  "name": "Neo4jSinkConnectorCypherJSONSchema",
  "config": {
    "topics": "creates,updates,deletes",
    "connector.class": "org.neo4j.connectors.kafka.sink.Neo4jConnector",
    "key.converter": "io.confluent.connect.json.JsonSchemaConverter",
    "key.converter.schemas.enable": true,
    "key.converter.schema.registry.url": "http://schema-registry:8081",
    "value.converter": "io.confluent.connect.json.JsonSchemaConverter",
    "value.converter.schemas.enable": true,
    "value.converter.schema.registry.url": "http://schema-registry:8081",
    "neo4j.uri": "neo4j://neo4j:7687",
    "neo4j.authentication.type": "BASIC",
    "neo4j.authentication.basic.username": "neo4j",
    "neo4j.authentication.basic.password": "dbpassword",

    "neo4j.cypher.topic.creates": "WITH __value.event.state.after AS state MERGE (p:Person {name: state.properties.name, surname: state.properties.surname}) MERGE (f:Family {name: state.properties.surname}) MERGE (p)-[:BELONGS_TO]->(f)",
    "neo4j.cypher.topic.updates": "WITH __value.event.state.before AS before, __value.event.state.after AS after MATCH (p:Person {name: before.properties.name, surname: before.properties.surname}) MATCH (fPre:Family {name: before.properties.surname}) OPTIONAL MATCH (p)-[b:BELONGS_TO]->(fPre) DELETE b WITH after, p SET p.name = after.properties.name, p.surname = after.properties.surname MERGE (f:Family {name: after.properties.surname}) MERGE (p)-[:BELONGS_TO]->(f)",
    "neo4j.cypher.topic.deletes": "WITH __value.event.state.before AS before MATCH (p:Person {name: before.properties.name, surname: before.properties.surname}) DETACH DELETE p",

    "neo4j.cypher.bind-header-as": "",
    "neo4j.cypher.bind-key-as": "",
    "neo4j.cypher.bind-value-as": "__value",
    "neo4j.cypher.bind-value-as-event": false
  }
}

[georgelza]

One of my questions would be, can I use a common structure implying the 2 nodes/vertices involved and the joining predicate.

Predicate as :
Subject: accountHolder ->Transaction -> Object: accountHolder
and at the same time Subject: accountHolder -> "client of" -> Object:Bank

Thinking wider here, the same accountHolder might have an account at another Bank, and the joining field might be a social_security_number, or a mobile_phon_number.

Creating another link, but now between 2 accountHolders being the same person.

G

[joshcornejo]

If you want to run something on a unique identifier, you can use (this is simple):

  "ssn": "123-45-6789",
  "name": "Alice Smith",
  "age": 34,
  "city": "London"
}

MERGE (p:Person {ssn: $ssn})
SET p += {
  name: $name,
  age: $age,
  city: $city
}
ON CREATE
  SET p.created = timestamp(),
      p.updated = timestamp()
ON MATCH
  SET p.updated = timestamp()

Now you always have 1 node that identifies the accountHolder.

[georgelza]

Can see the "idea" of only have one node for an person...

Might it not make sense to create a Person node based on ssn and then create AccountHolder nodes based on the bank/accountNumber and the ssn associated by the bank for that account.

That way you can immediately see where a Person have accounts. Might expose how they also moving funds between accounts,

Instead of it all looking like one account ?

G

[joshcornejo]

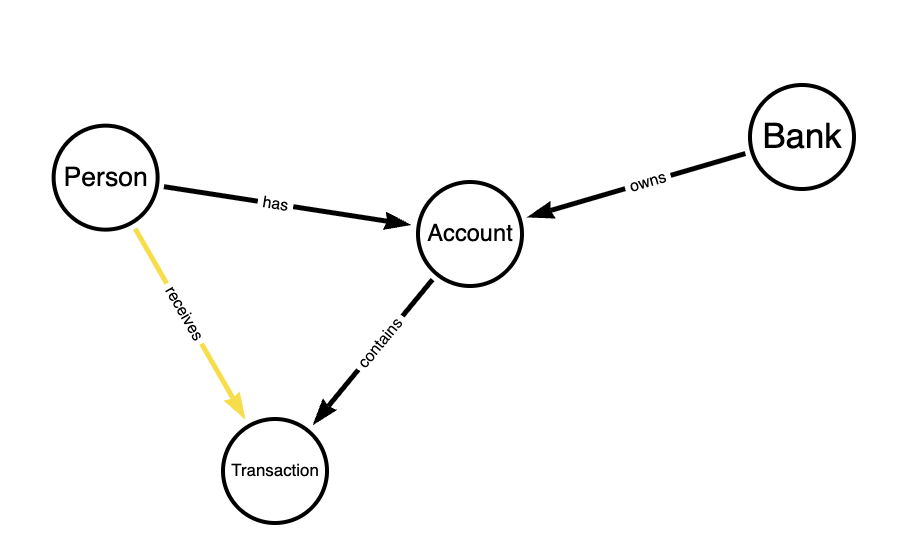

It is all relative to what you are trying to model ... to an extent this example looks very similar to an ERD anyway.

Here the black edges represent "my stuff" and the yellow edge could represent "recipients' stuff" (simplistic, it could be more complicated for an AML/KYC scenario).

[georgelza]

in hind sight... this model does fit better from the view point that an account is held by the bank and the account might belong to a corporate, which then have multiple People.

so i would actually move the People node out one level... -> AccountOwner and then link AccountOwner to People.

G

[joshcornejo]

Your choice of how to model depending on your requirements

In ontologies you can have something that looks like:

:Agent <-[is_a]- :Person           // the person
:Agent <-[is_a]- :NonHumanAgents   // the computer/agentic/service/etc definitions
:Person <-[is_a]- :NaturalPerson   // humans
:Person <-[is_a]- :LegalPerson.    // corporations

[georgelza]

It's a new world... can def see the value...
a old RDBMS guys, with recent Lakehouse type experience and Unstructured DB (DocumentStore) and TSDB experience...

Finding a new tech thats, like wow... is Tech => Fun.

G
